Welcome to the CroPulse Fertigation Calculating Algorithm!
This tool will help you calculate the necessary nutrient elements values for your crops
Fertigation units manufactured by CroPulse Ltd. are designed for precise dosed application of nutrients to the root zone of plants.
The fertigation unit's model is selected in accordance with the cultivation method, production volume, type of agricultural crop and other terms and conditions.
For the correct selection of the fertigation unit's model, please contact us at Info@CroPulse.net.
The presented calculating algorithm is an auxiliary tool for the appropriate use of CroPulse's fertigation units, as well as separately installed Mixrite dosing pumps.
It allows to automatically calculate the composition of nutrient solutions intended for application through fertigation units and separate Mixrite pumps.
Attention!
This calculating algorithm performs calculations based on the recommendations of the basic needs of the main agricultural crops in nutrients provided by leading fertilizer manufacturers and the results of the calculations can be considered only as basic (not taking into account the totality of specific terms and conditions, such as chemical analysis of water and soil, the applied volume of irrigation, the vegetation phase of plants, monitoring the actual physical condition of plants, etc.).
CroPulse Company is under no circumstances responsible for any possible crop losses or deterioration in its quality, or any other possible problems that the user may encounter in connection with the use of the presented calculating algorithm.
When preparing a solution recipe, it is necessary to follow the recommendations on chemical compatibility of different types of fertilizers.
Failure to follow the recommendations may result in the formation of unwanted chemical compounds and solid sediment in the fertilizer solution, which can negatively affect plants and also lead to pump MixRite failure.
Each of the incompatible fertilizer solutions must be supplied through a separate pump.
The fertilizer used, must be water solible.
N
P
K
Dosage

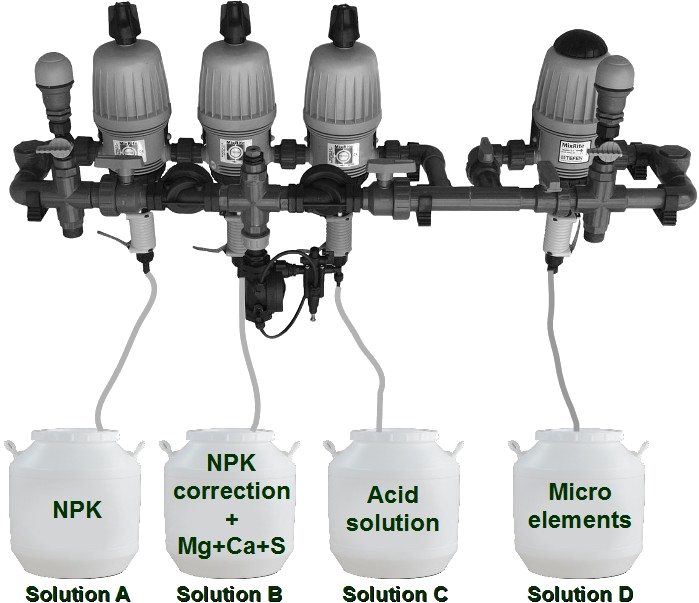

Illustration of Fertigation Unit - For Example Only
A separate nutrient solution tank is installed for each pump.
If a sprinkler irrigation system is not used, microelements can be added to solution B (subject to chemical compatibility conditions).
NPK(N-P-K) per 10L of Water:
Missing N:
Missing P:
Missing K:
Preparation of the solution:
Dissolve fertilizer in 10 liters of water.
To replenish the missing elements:
Prepare fertilizers containing your missing NPK (either complex or simple fertilizer)
Prepare fertilizers containing Mg, Ca, S.
Go to the next calculation
N
P
K
Dosage
Illustration of Fertigation Unit - For Example Only
A separate nutrient solution tank is installed for each pump.
If a sprinkler irrigation system is not used, microelements can be added to solution B (subject to chemical compatibility conditions).
NPK(N-P-K) per 10L of Water:
Calcium (Ca) Fertilizer per 10L of Water:
Magnesium (Mg) Fertilizer per 10L of Water:
Sulfur (S) Fertilizer per 10L of Water:
Missing N:
Missing P:
Missing K:
Preparation of the solution:
Dissolve fertilizer in 10 liters of water.
I - Dissolve Calcium (Ca) fertilizer in 10 liters of water.
II - Dissolve Magnesium (Mg) fertilizer in 10 liters of water.
III - Dissolve Sulfur (S) fertilizer in 10 liters of water.
To replenish the missing elements:
Prepare fertilizers containing your missing NPK (either complex or simple fertilizer)
Go to the next calculation
N
P
K
Dosage
Illustration of Fertigation Unit - For Example Only
A separate nutrient solution tank is installed for each pump.
If a sprinkler irrigation system is not used, microelements can be added to solution B (subject to chemical compatibility conditions).
NPK(N-P-K) per 10L of Water:
Missing N:
Missing P:
Missing K:
Preparation of the solution:
Dissolve fertilizer in 10 liters of water.
Go to the next calculation
Dosage
Illustration of Fertigation Unit - For Example Only
A separate nutrient solution tank is installed for each pump.
If a sprinkler irrigation system is not used, microelements can be added to solution B (subject to chemical compatibility conditions).
X liters of acid to be added to 10L of water
Preparation of the solution:
Pour X liters of acid into 10 liters of water.
Attention!
It is necessary to take precautions to avoid an accident:
Wear protective glasses and gloves.
Do not pour water into acid - it is dangerous!
Go to the next calculation
Dosage
Illustration of Fertigation Unit - For Example Only
A separate nutrient solution tank is installed for each pump.
If a sprinkler irrigation system is not used, microelements can be added to solution B (subject to chemical compatibility conditions).
Iron (Fe) Fertilizer per 10L of Water:
Manganese (Mn) Fertilizer per 10L of Water:
Molybdenum (Mo) Fertilizer per 10L of Water:
Zinc (Zn) Fertilizer per 10L of Water:
Copper (Cu) Fertilizer per 10L of Water:
Boron (B) Fertilizer per 10L of Water:
Dissolve Iron (Fe) fertilizer in 10 liters of water.
Dissolve Manganese (Mn) fertilizer in 10 liters of water.
Dissolve Molybdenum (Mo) fertilizer in 10 liters of water.
Dissolve Zinc (Zn) fertilizer in 10 liters of water.
Dissolve Copper (Cu) fertilizer in 10 liters of water.
Dissolve Boron (B) fertilizer in 10 liters of water.
| Urea | NH4NO3 | (NH4)2SO4 | Ca(NO3)2 | KNO3 | KCl | K2SO4 | NH4H2PO4 | Fe/Zn/Cu/Mn-SO4 | Fe/Zn/Cu/Mn-Chelate | MgSO4 | H3PO4 | H2SO4 | HNO3 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Urea | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Ammonium Nitrate | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Ammonium Sulphate | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | R | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Calcium Nitrate | ✓ | ✓ | ✕ | ✓ | ✓ | ✓ | ✕ | ✕ | ✕ | R | ✕ | ✕ | ✕ | ✓ |
| Potassium Nitrate | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Potassium Chloride | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | R | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Potassium Sulphate | ✓ | ✓ | R | ✕ | ✓ | R | ✓ | ✓ | R | ✓ | R | ✓ | R | ✓ |
| Ammonium Phosphate | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | ✓ | ✓ | ✕ | R | ✕ | ✓ | ✓ | ✓ |
| Fe/Zn/Cu/Mn Sulphate | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | R | ✕ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Fe/Zn/Cu/Mn Chelate | ✓ | ✓ | ✓ | R | ✓ | ✓ | ✓ | R | ✓ | ✓ | ✓ | R | ✓ | ✕ |
| Magnesium Sulphate | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | R | ✕ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Phosphoric Acid | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | ✓ | ✓ | ✓ | R | ✓ | ✓ | ✓ | ✓ |
| Sulphuric Acid | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | R | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Nitric Acid | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | ✕ | ✓ | ✓ | ✓ | ✓ |
